Vector VTR-1011-XL Thor continuous-feed jaw crusher — 270 × 90 mm jaws, up to 110 mm feed, 150–300 kg/h throughput, Mohs ≤ 8 and 7″ touchscreen HMI with jam detection.

VTR-1011-XL
product

Thor Jaw Crusher

200 mm max feed · Mohs ≤ 8 · 7″ touchscreen · up to ~150 kg/h continuous

Overview & Technical Specification Downloads Standards
Request a quote

Overview

The Vector VTR-1011-XL Thor is a continuous-feed, heavy-duty primary jaw crusher for laboratories and industrial sample-prep lines that routinely see large lumps, hard rock, and high daily throughput — exploration cores, run-of-mine fragments, clinker, and refractory ceramics before milling, splitting, or assay.

A 270 × 90 mm jaw accepts feed up to 110 mm in maximum dimension, with stepless gap 0–30 mm and practical output down to about 1 mm so many workflows stay on a single primary stage. Throughput reaches up to 300 kg/h (150–300 kg/h material dependent) under continuous operation; a 7.5 kW drive plus 0.18 kW RDS delivers torque for materials up to Mohs hardness 8, with jam detection and automatic reverse-clear. Operator control uses a 7-inch capacitive touchscreen HMI for stored crush profiles and live status, with a dedicated start/stop, front-access emergency stop, and an optional automatic sample splitter for subsampling without stopping the crusher. The machine is built for CE machinery expectations — safety-critical functions are implemented in hardware independent of the HMI — and supports aggregate and rock sample-prep chains where practices such as ASTM D75/C702 are used before chemical assay, grindability, or construction-materials tests.

At a glance

  • 110 mm max feed — large core and ROM-style lumps without pre-breaking
  • ~1 mm minimum product (material and gap dependent) — primary through near-secondary in one machine
  • 150–300 kg/h continuous throughput for shift-scale campaigns
  • 7.5 kW + RDS drive — Mohs ≤ 8 capability with jam detect & auto clear
  • 7″ touchscreen HMI + physical start/stop + E-stop
  • CE machinery design — safety-critical functions in hardware

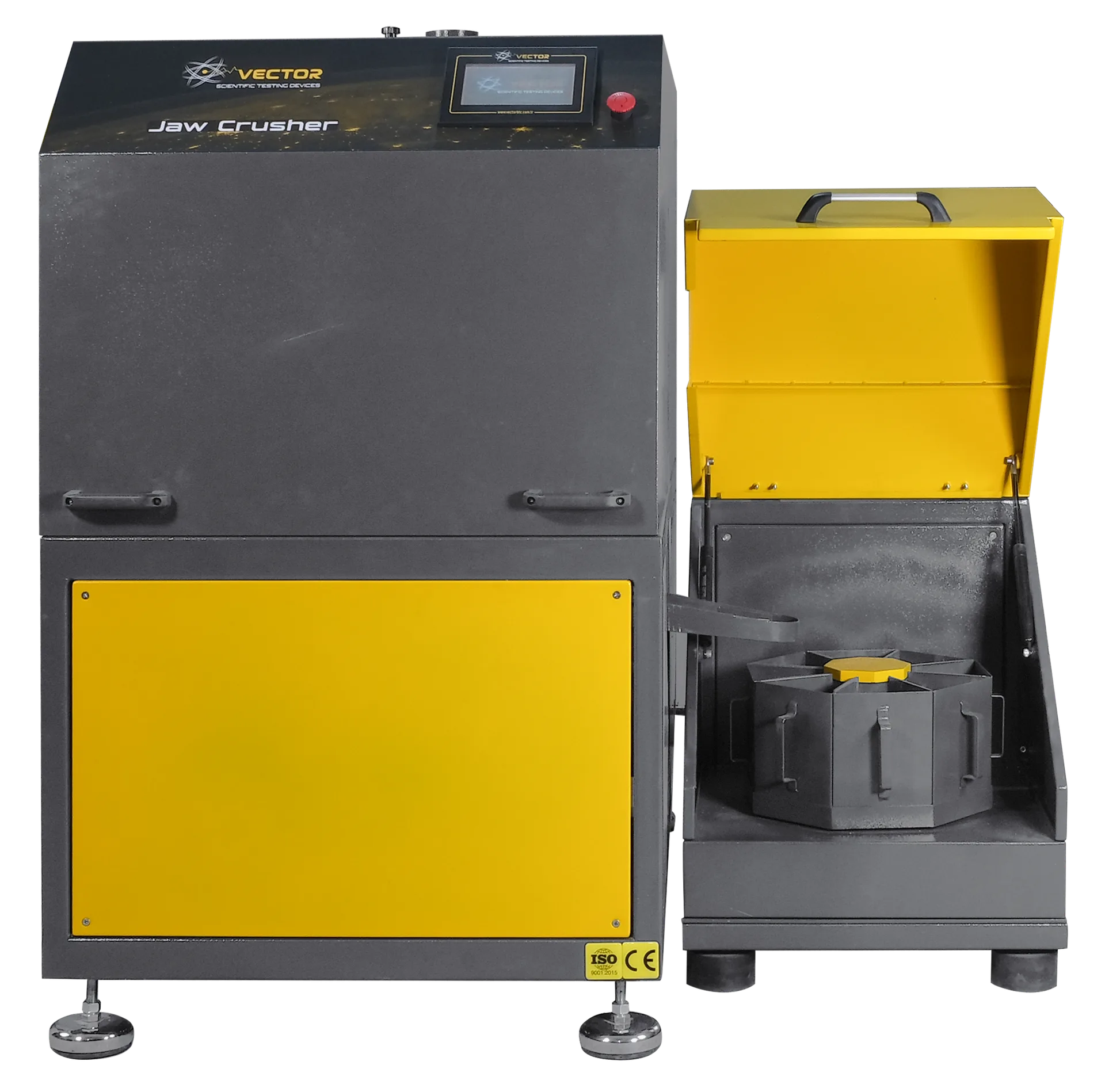

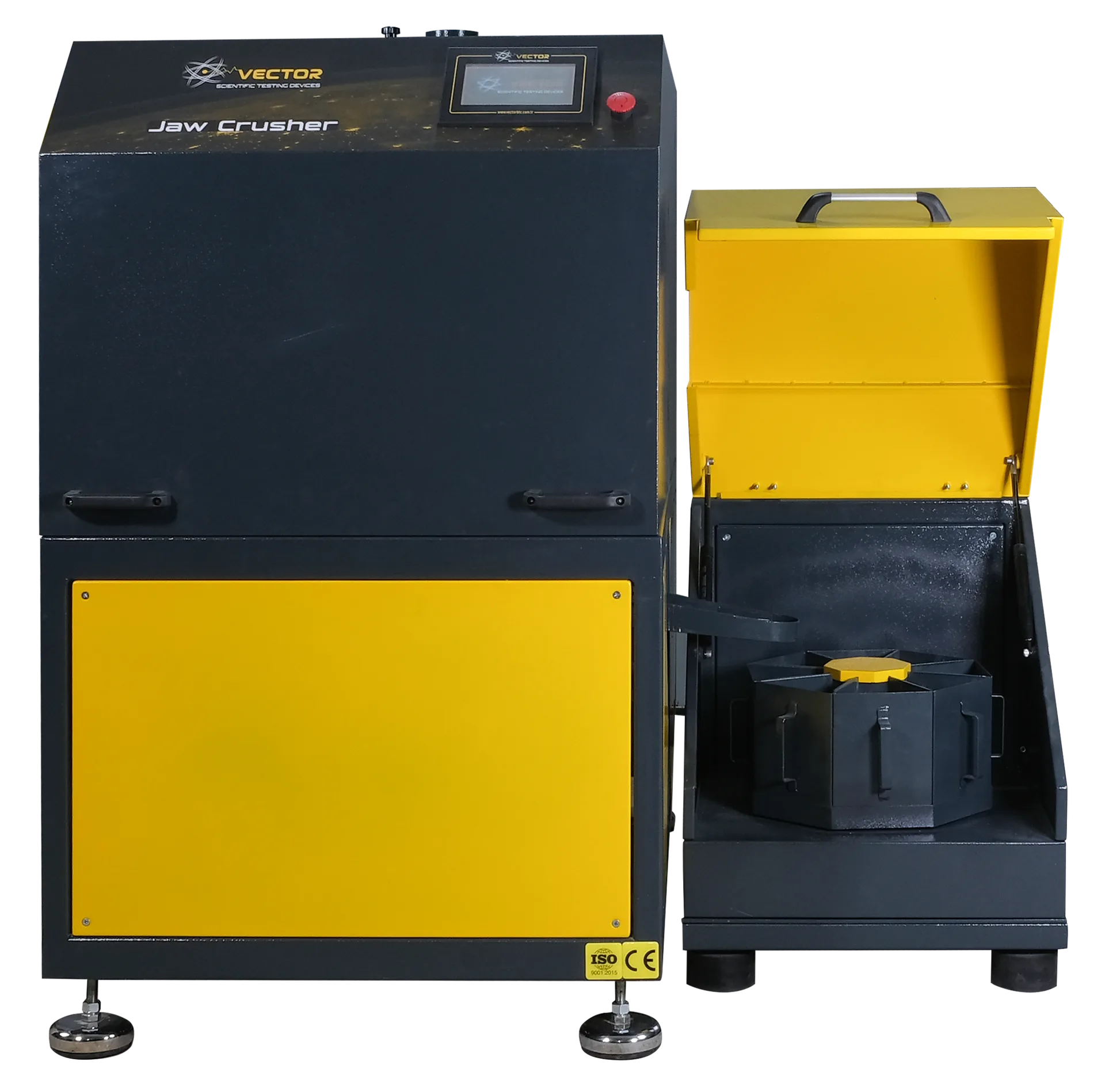

Vector VTR-1011-XL Thor heavy-duty jaw crusher — floor-standing primary crusher with touchscreen HMI

Application Areas

Thor is purpose-built for primary reduction wherever geology, mining, metallurgy, or materials science workflows start with physically large or very hard specimens.

Mining & exploration

Large drill core, ROM ore, and bulk geological samples before pulverising, bottle rolls, or fire-assay splits.

Metallurgy & process control

High-hardness ores and alloys reduced for certification, furnace feeds, and parallel QC splits.

Geology & mineralogy

Oversized rock and core for thin sections, XRD, ICP-OES/MS, and further comminution steps.

Construction materials

Clinker, limestone blocks, aggregates, and slag crushed to controlled top sizes for chemical and physical testing.

Ceramics & refractories

Pre-crushing of sintered ceramics, corundum, and oxide refractories before fine grinding.

Coal, energy & R&D

Coal and coke prep routes, plus research on very hard composites where specimen mass and hardness both run high.

Advantages & Features

Performance characteristics focused on feed capacity, hardness headroom, operator control, and line integration — what matters when every shift has to clear the sample queue.

110 mm

Largest feed in the Vector jaw range

Load large core sections and coarse fragments directly — reducing manual breaking and secondary transfers compared with compact jaw units.

0–30 mm

Stepless gap, ~1 mm product floor

Continuous gap setting from 0–30 mm supports coarse primary work through finer passes so ball mills and ring mills see a controlled top size.

300 kg/h

Continuous throughput

Designed for steady feeder-style operation at up to about 300 kg/h (150–300 kg/h material dependent) — suited to exploration prep halls, assay support, and industrial QC lanes.

7.5 kW

Torque for Mohs ≤ 8

Hard ores, quartz-rich rocks, refractory ceramics, and high-strength alloys within the stated hardness band — with jam detection and automatic reverse-clear to limit overload trips.

7″ HMI

Profiles & diagnostics at the machine

Capacitive touchscreen for stored crush profiles, gap-related settings, and status; separate tactile start/stop and always-reachable emergency stop alongside software controls.

Split

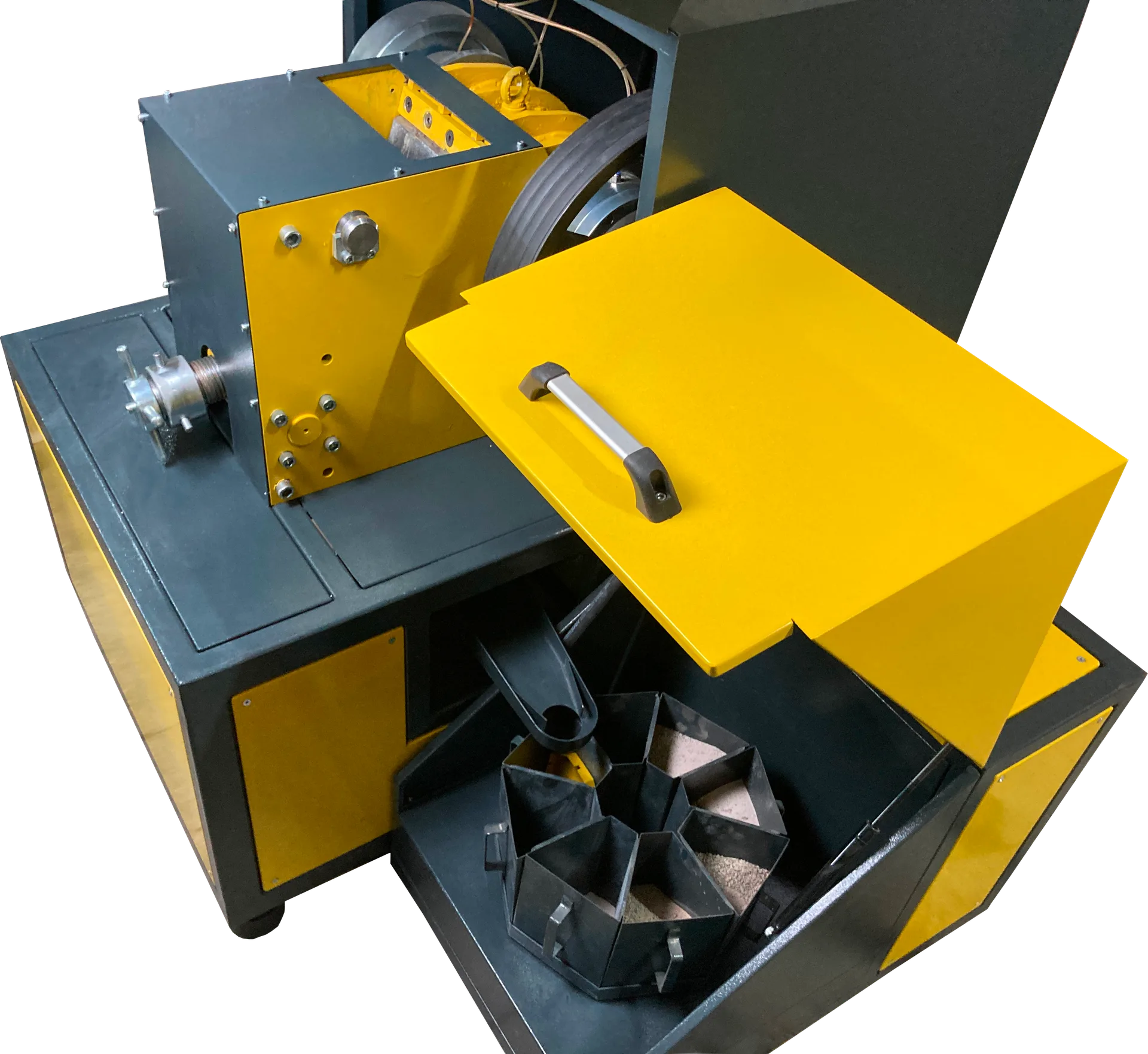

Optional automatic splitter

Representative subsampling of the discharge without stopping crushing — duplicate, reject, and referee splits for high-throughput analytical programmes.

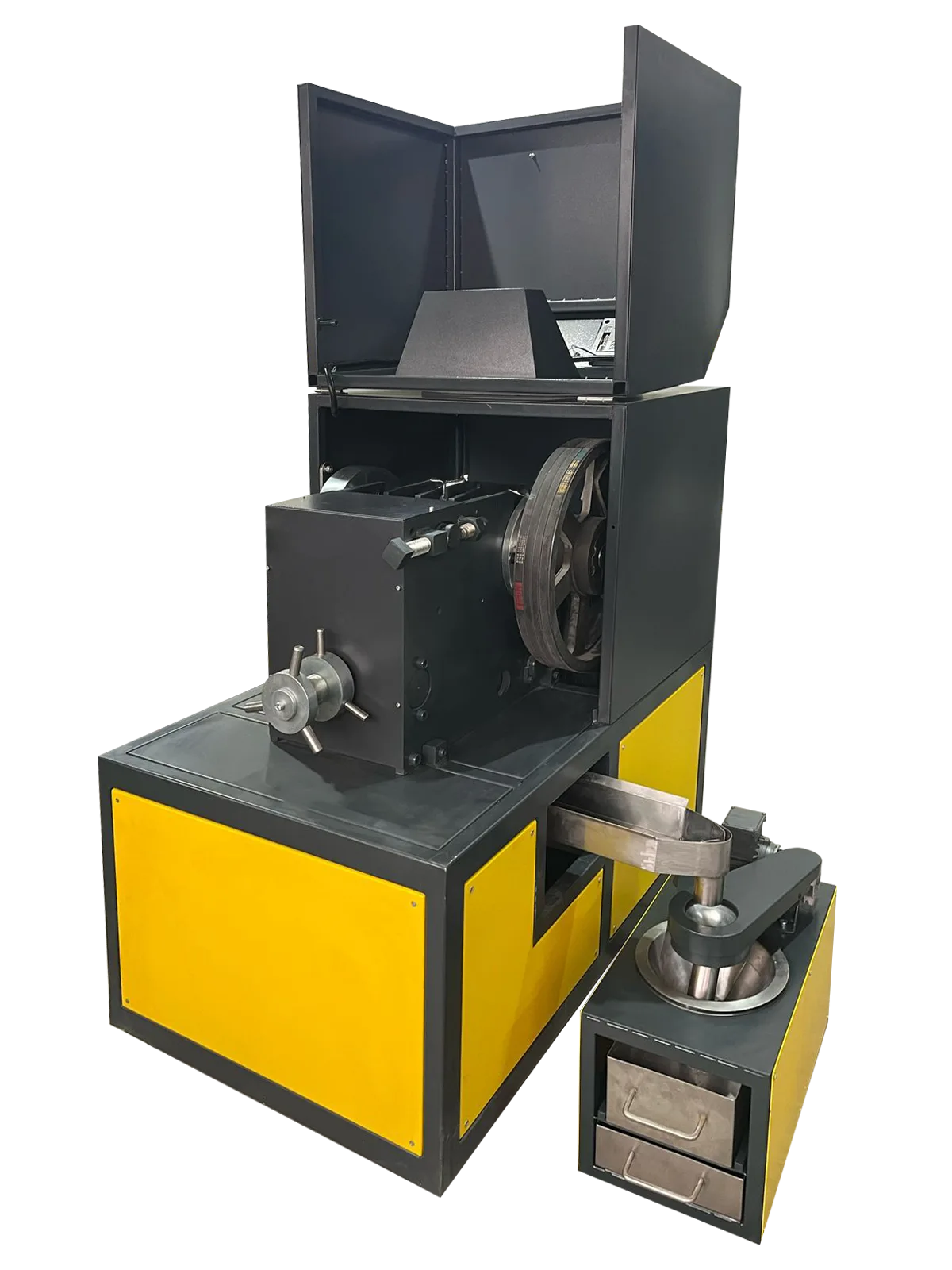

Vector Thor jaw crusher — heavy-duty sample preparation

When a standard lab jaw is no longer enough

Most bench and floor laboratory jaw crushers are limited to roughly 50–110 mm maximum feed. That is adequate for many QC routes — but not when oversized drill core, coarse ROM fragments, or hard refractory pieces arrive straight from the field and would otherwise need hand-breaking or an extra pre-crush step.

  • Large single-pass envelope — up to ~110 mm feed versus ~90 mm on the Vector Nysos, so fewer handling steps before the same downstream mills and presses.

  • Hard-material headroom — 7.5 kW drive (plus 0.18 kW RDS) and geometry aimed at sustained duty on materials up to Mohs 8 where smaller drives risk stall or accelerated wear.

  • Automation-friendly — stored profiles on the HMI, jam-aware motor control, and an optional automatic splitter align Thor with high-throughput exploration and assay lines.

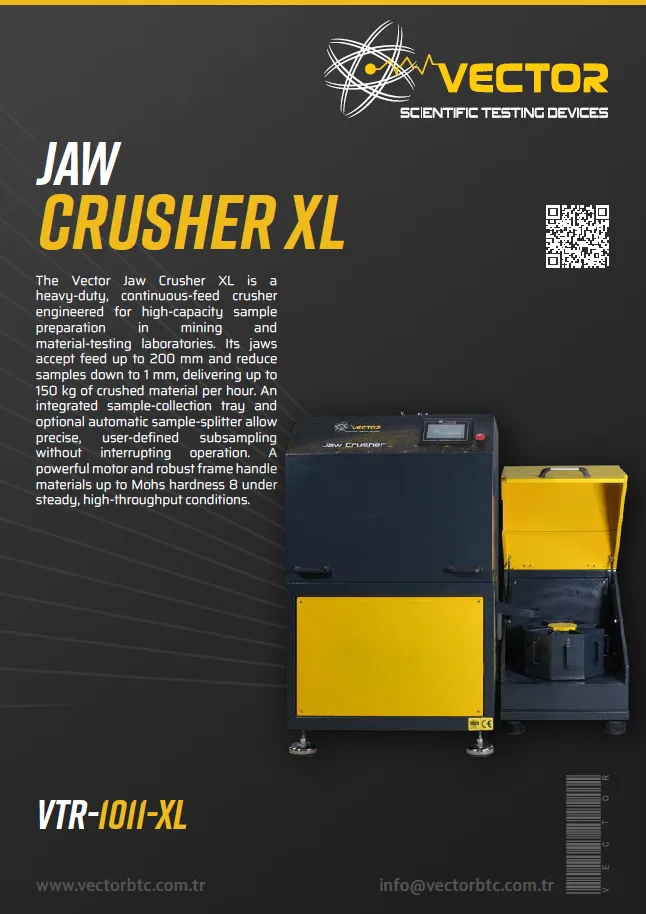

Vector VTR-1011-XL Thor jaw crusher — brochure cover

Downloads

Product brochure for the Vector VTR-1011-XL Thor jaw crusher — specifications, HMI and safety features, and typical high-throughput sample-prep applications.

Brochure (PDF)

Thor heavy duty jaw crusher

Technical Data

Product code
VTR-1011-XL Thor
Jaw size
270 × 90 mm
Max feed size
Up to 110 mm (maximum dimension)
Minimum particle size
Down to about 1 mm (material and gap dependent)
Jaw width
270 mm
Throughput capacity
150–300 kg/h (continuous, material dependent)
Drive power
7.5 kW + RDS 0.18 kW
Material hardness
Mohs ≤ 8
Jaw material
Hardened manganese steel
HMI
7″ capacitive touchscreen; physical start/stop; emergency stop
Jam protection
Integrated detection with automatic reverse-clear attempt
Sample splitter
Optional automatic splitter accessory
Electrical supply
380 V / 50 Hz
Dimensions (L × W × H)
850 × 1250 × 1350 mm
Net weight (approx.)
~780 kg + RDS 65 kg
