Analytical laboratories
XRF and FTIR pellet samples with consistent density and surface quality for accurate spectroscopic measurements.
Vector VTR-1027 fully automatic XRF pellet press — up to 400 kN, programmable load cycles and touchscreen control for XRF and FTIR prep in 8–40 T options.
VTR-1027
product
XRF Pellet Press
VTR-1027 · 8–40 T · programmable cycles · XRF and FTIR pellet prep
Overview

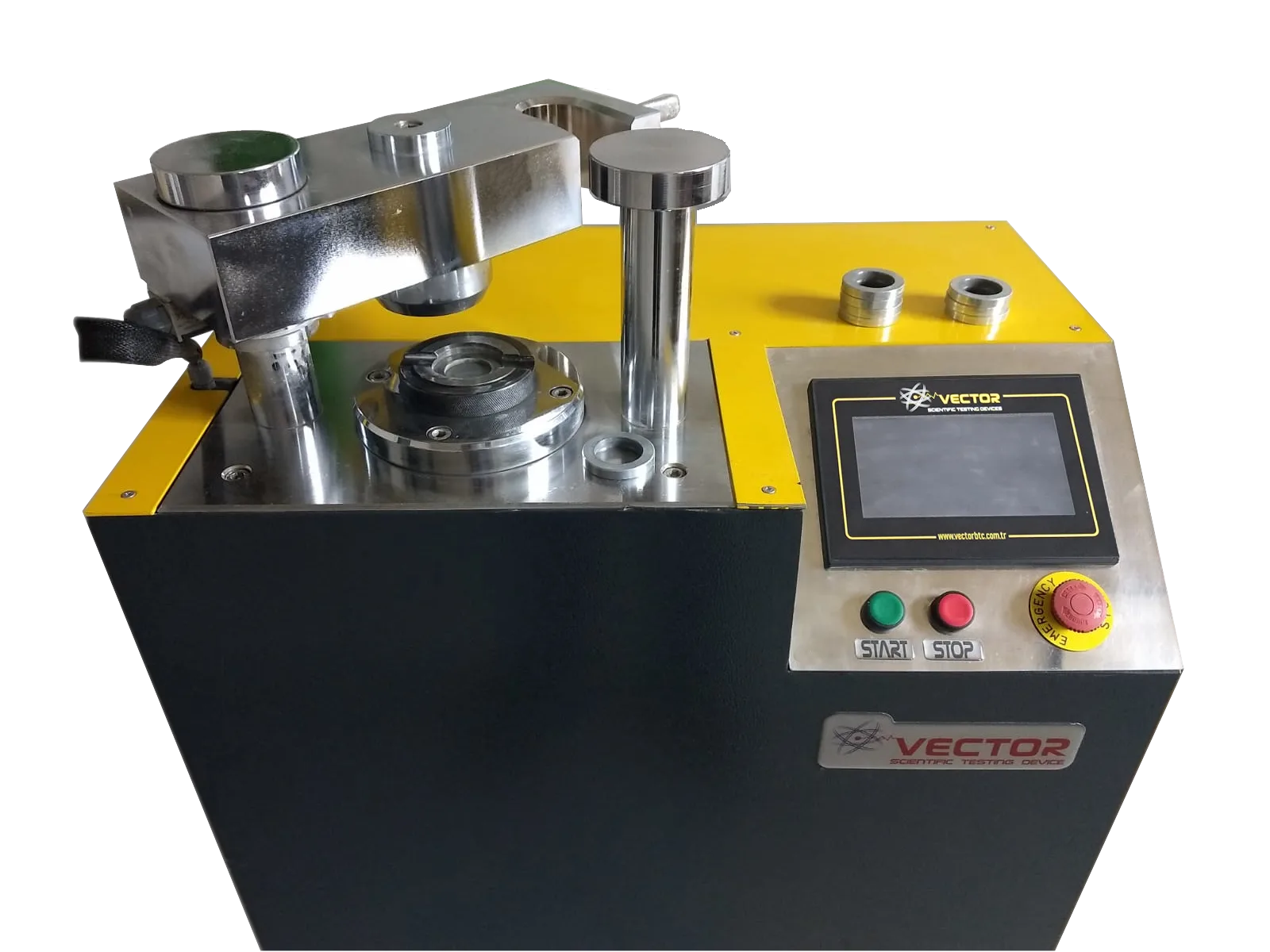

The Vector VTR-1027 XRF Pellet Press is a fully automatic hydraulic press engineered for laboratories that demand precision, speed, and repeatability in sample preparation — for X-ray fluorescence (XRF), FTIR, and a broad range of analytical techniques.
The VTR-1027 produces consistent, high-quality pellet samples in under two minutes, every time. Whether you work in mining and geology, pharmaceutical research, materials science, or academia, it delivers the performance and reliability your workflows require.
Maximum pressure options of 8, 15, 25, and 40 tonnes (up to 400 kN) cover delicate organic powders through hard mineral matrices. Programmable multi-step load cycles and a maintain load function hold the exact setpoint as powders compact — critical for uniform pellet density and analytical accuracy.
At a glance
- VTR-1027 — fully automatic XRF / FTIR pellet press
- 400 kN max — 8, 15, 25, 40 T capacity options
- 10 × 10 programs — ramp, dwell, and release per step
- Maintain load — holds setpoint through dwell
- 5–40 mm dies — Specac, heated platens, film makers
- <2 min typical pressing cycle
Product video

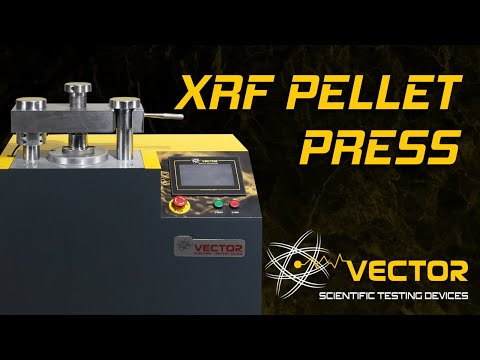

Watch the VTR-1027 automatic pellet press form repeatable discs for XRF and FTIR sample preparation.
Applications
The VTR-1027 is designed for use across analytical, mining, pharmaceutical, materials, and education laboratories that need repeatable pellet geometry for spectroscopy.
Mining & geology
Rapid, repeatable pelletizing of mineral and ore samples for elemental composition analysis.
Pharmaceutical industry
Compaction of powdered samples for quality control and analytical studies.
Materials science
Sample preparation for R&D involving advanced materials characterisation.
Education & research
A reliable, easy-to-operate platform for teaching and developing sample preparation protocols in university and institutional laboratories.
Key features
Programmable load cycles, maintain-load compensation, wide die compatibility, and advanced safety — built for high-throughput analytical sample prep.
Programmable load cycles
Up to 10 pressing programs, each with 10 steps. Control ramp rates, dwell times, and release rates — save and recall protocols for reproducible results.
Maintain load function
Continuously tops up hydraulic pressure to hold the exact setpoint as powder compacts — essential for soft, hygroscopic, or fine-grained materials.
Precision pressure control
8, 15, 25, and 40 T options. Adjust pressure in real time via the touchscreen without interrupting the cycle.
Touchscreen display
High-contrast LED touchscreen for parameters, live cycle monitoring, and program switching — legible under bright laboratory lighting.
Wide die compatibility
Specac pellet dies, heated platens, and film makers — KBr pellets for FTIR and powder pellets for XRF without a separate press.
Stainless steel construction
Hardened stainless steel with mirror-polished pressing surfaces for longevity and reduced contamination risk in trace analysis.
Advanced safety features
Operator & equipment protection
- Mechanical safety lock during high-pressure cycles
- Automatic pump shut-off valve to prevent overloading
- Controlled pressure release rates defined per program step
How it works
The VTR-1027 operates as a fully programmable hydraulic press. From sample load to final pressure release, each parameter — ramp rates, dwell times, and release speeds — can be defined, saved, and recalled at any time.
- LED touchscreen — monitor and adjust pressing conditions in real time.
- 10 saved programs — up to 10 steps each; eliminates variability between operators.
- Load units — tonnes, US tons, long tons, kgF, and kN on the display.
Why choose the Vector VTR-1027?
Semi-automatic or manual presses require intervention at each stage — introducing variability, slowing throughput, and making it difficult to reproduce results between users or shifts.
- Fully automatic — once a protocol is saved, any operator can reproduce it perfectly.
- Maintain load — uniform pellet density for soft and hygroscopic powders.
- Fast cycles — under two minutes per pressing run for high-throughput labs.
Frequently asked questions
What is an XRF pellet press used for?
It compacts powdered samples into solid, flat-surfaced pellets for X-ray fluorescence (XRF) spectrometry. Uniform, dense pellets are essential for accurate elemental quantification — the VTR-1027 ensures consistent compaction through programmable load control and the maintain load function.
Can the VTR-1027 be used for FTIR sample preparation?
Yes. It is compatible with KBr pellet dies and heated platens used in FTIR workflows. Adjustable pressure and 5–40 mm die compatibility suit both XRF and FTIR preparation.
How many pressing programs can be stored?
Up to 10 complete pressing programs, each containing up to 10 individual steps. Programs are created, edited, and recalled from the touchscreen.
What pressing die sizes are compatible?
Dies from 5 mm to 40 mm in diameter, including Specac pellet dies, heated platens, film makers, and standard hydraulic press die sets.
How long does a pressing cycle take?
A complete cycle takes under two minutes — well suited for high-throughput laboratories processing large sample volumes per shift.
Downloads
Product brochure for the Vector VTR-1027 XRF pellet press — pressure ratings, programmable cycles, die compatibility, and typical XRF / FTIR laboratory applications.
Brochure (PDF)Vector XRF pellet press
Technical overview
Product code
VTR-1027
Max pressure options
8, 15, 25, 40 T (up to 400 kN)
Programmable programs
Up to 10 programs × 10 steps each
Load display units
Tonnes, US tons, long tons, kgF, kN
Maintain load function
0.1 min to indefinite hold
Pressing cycle time
Under 2 minutes
Pressing die diameters
5 mm to 40 mm
Touchscreen
LED, high-contrast, intuitive
Safety features
Safety lock, automatic pump shut-off valve
Operating voltage
220 V, 50 Hz
Pressing surface
Mirror-polished hardened stainless steel
Dimensions (W × D × H)
770 × 550 × 1300 mm
Weight
300 kg
Applications support
Not sure this is the right model?
Share your standard, sample type, and lab workflow — we'll recommend a verified configuration you can quote against.
- Matched to EN, ISO, and ASTM test methods
- Quote and lead time typically within one business day
- On-site demo or remote walkthrough available
