VTR-1041

Analytical Sieve Shaker

200 / 300 mm sieves · adjustable amplitude · digital timer · ASTM E11 / ISO 3310

Overview & Technical Specification Downloads Standards

Overview

The Vector VTR-1041 Analytical Sieve Shaker delivers controlled-amplitude vibration for reproducible particle size distribution on stacked ISO test sieves — the everyday method for aggregates, soils, cement-related powders, and general laboratory QC above the ultrafine range.

An electromagnetic drive imparts 3-dimensional throwing motion to the sieve stack with adjustable amplitude so cohesive and granular materials disperse without the vacuum infrastructure of air jet sieving. For both dry and wet sieving, operators define sieving time (up to 60 minutes) and repeat the same motion profile shift to shift — separating up to 8 fractions in one operation.

The VTR-1041 accepts standard 200 mm and 300 mm test sieves with pan and lid, aligning with common ASTM E11 and ISO 3310 sieve-frame practice. Vector configures amplitude and timing for your referenced standards and internal SOPs.

At a glance

VTR-1041 — analytical sieve shaker
200 / 300 mm — standard test sieve diameters
Electromagnetic — 3D throwing motion
Dry / wet — versatile sieving
8 fractions — single operation
Timer — up to 60 minutes
ASTM E11, ISO 3310 sieve compatibility
CE marked laboratory equipment

Standards & conformity

Browse the standards library

Designed for mechanical sieving workflows that reference ASTM E11 and ISO 3310 test sieve frames, with method timing aligned to your laboratory SOPs. Supplied as CE-marked equipment with Vector support for stack setup and amplitude selection.

Vector VTR-1041 analytical sieve shaker — controlled vibration particle size analyser

Applications

Mechanical sieve shaking remains the workhorse for grading sand, aggregate, soil, and free-flowing powders where air jet methods are unnecessary.

Cement & building materials

Raw meal, clinker, sand, and filler grading — fineness modules and residue curves alongside Blaine and strength programmes.

Aggregates & quarry

Graded stone, sand, and manufactured fines for mix design, compliance reporting, and production QC.

Soils & geotechnics

Particle size distribution for classification, permeability studies, and construction material acceptance.

Food & chemicals

Free-flowing powders and granules where repeatable mechanical dispersion is sufficient for QC.

Education & R&D

Teaching labs and method development comparing amplitude, time, and stack configuration on standard test sieves.

Key features

Stable vibration, standard sieve compatibility, and operator-friendly timing for repeatable grading results.

Electromagnetic drive

3-dimensional throwing motion with adjustable amplitude — match dispersion needs for fine sands through coarse aggregate without over-agitation.

200/300

Standard sieve sizes

Accepts 200 mm and 300 mm diameter test sieves, pans, and lids per ISO frame practice.

Timer

Digital timing

Programmable timer up to 60 minutes — repeatable duration per method and reduced operator timing variation.

Stack

Multi-sieve stacks

Up to 8 fractions in one operation — full grading towers for distribution curves from single-sieve residue to complete particle size curves.

Compact

Bench footprint

Laboratory-friendly layout beside mills, splitters, and balances on busy sample-prep lines.

Laboratory equipment

CE-marked unit for industrial QC, commercial testing, and research laboratories.

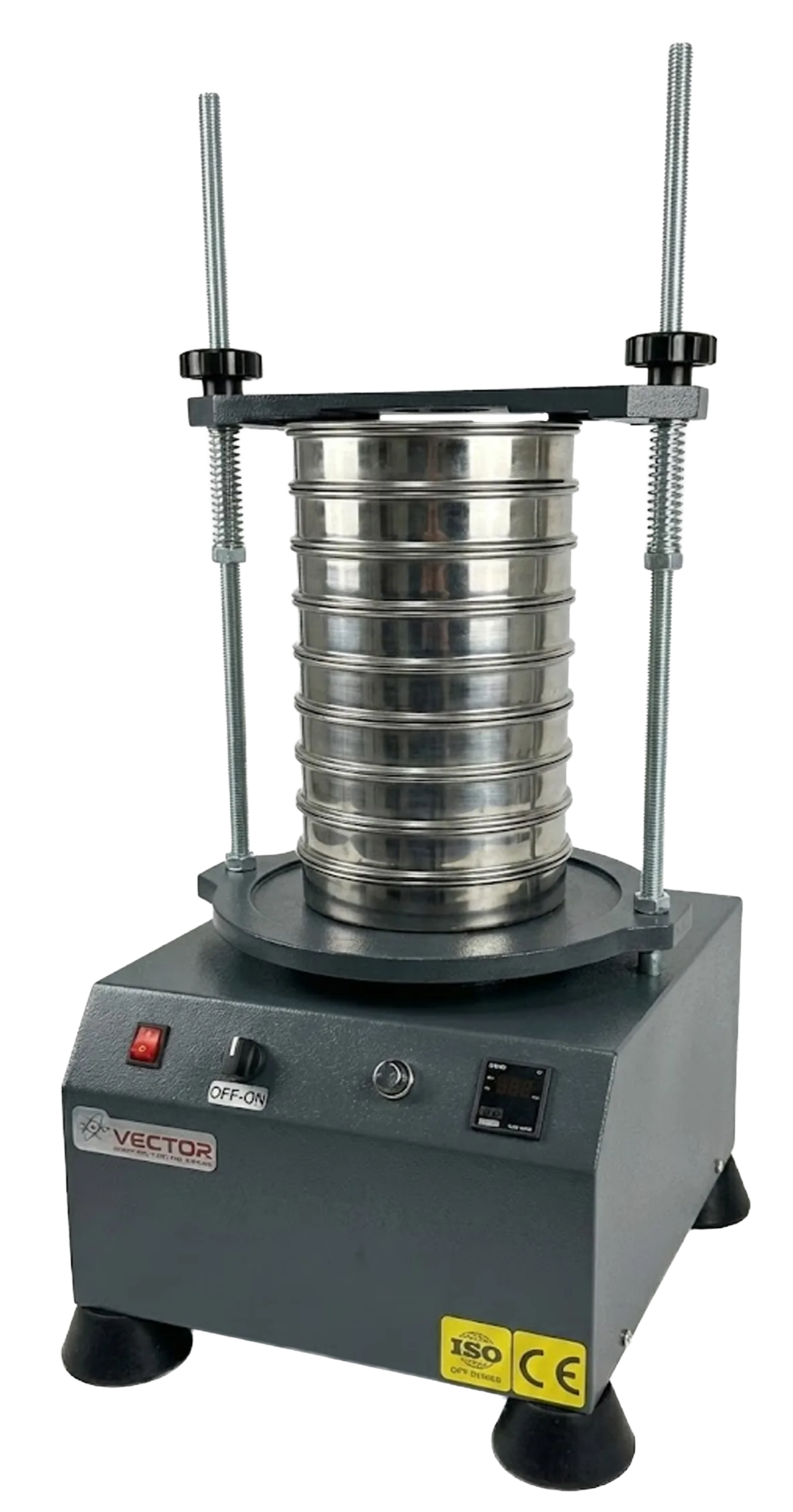

Vector VTR-1041 analytical sieve shaker — test sieve stack on vibration platform

How it works

A weighed sample is placed on the top sieve of a nested stack. The shaker imparts controlled 3-dimensional throwing motion; particles smaller than each aperture pass to lower sieves while oversize remains as residue. Weighing each fraction yields the particle size distribution — for dry or wet material.

Electromagnetic drive — 3D throwing motion tuned for cohesive fines vs coarse aggregate.
Timed cycles — up to 60 minutes, repeatable per ASTM, ISO, or internal SOP.
Up to 8 fractions — configure mesh series for the required grading band in one run.

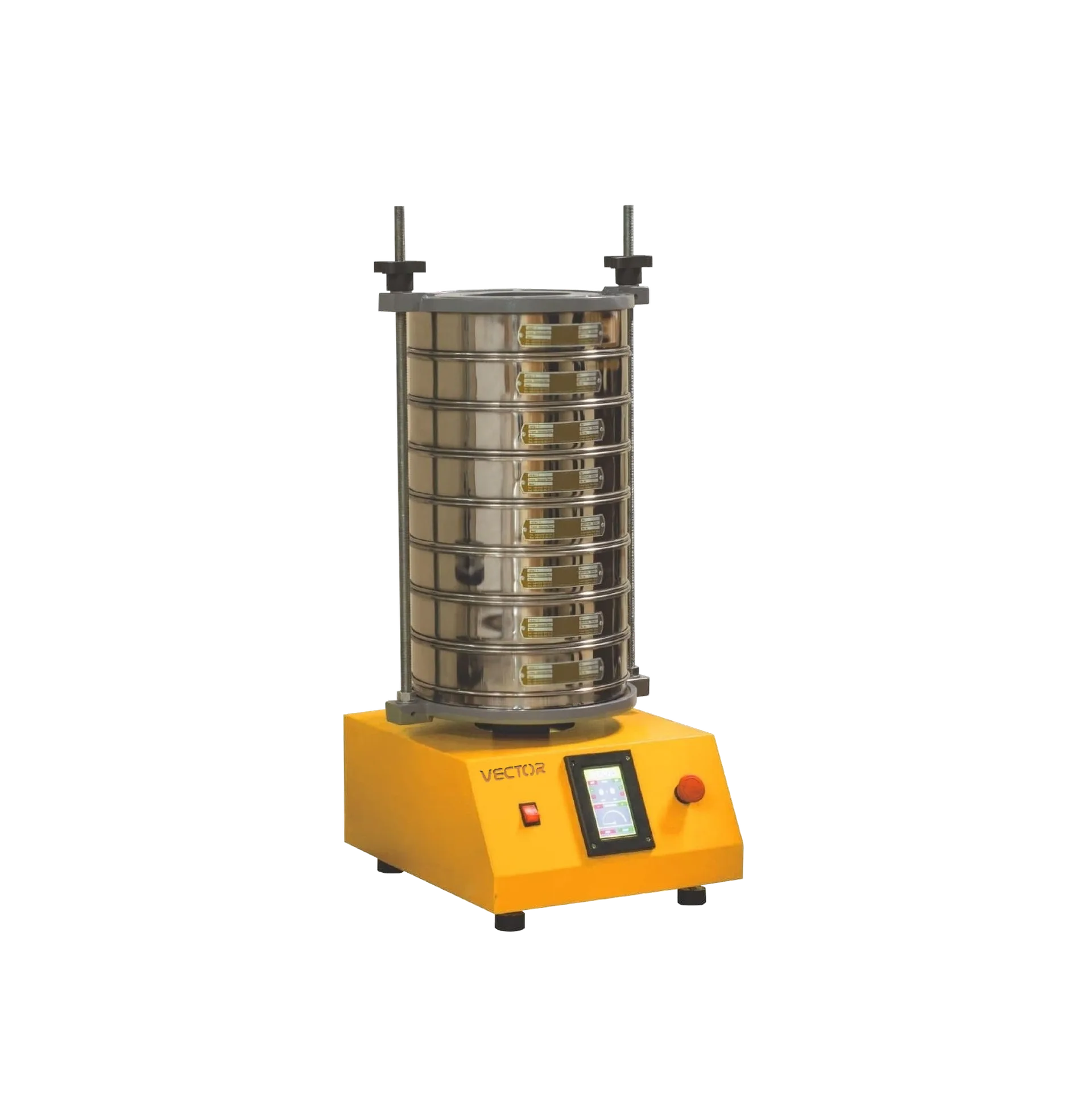

Control & operation

Quick setup and stable clamping keep stacks secure during vibration. Digital timing and clear controls support high-throughput labs running many grading cycles per shift.

Secure clamping — stable stack retention for tall sieve towers.
Repeatable programs — store typical duration and amplitude settings.
Vector support — sieve selection, amplitude guidance, and method alignment.

Vector VTR-1041 analytical sieve shaker — brochure cover

Downloads

Product brochure for the Vector VTR-1041 analytical sieve shaker — specifications, amplitude and timing control, sieve compatibility, and typical grading laboratory applications.

Brochure (PDF)

Vector analytical sieve shaker

Technical overview

Product code

VTR-1041

Application

Dry and wet sieving

Drive

Electromagnetic

Motion

3-dimensional throwing motion

Test sieve diameters

200 mm and 300 mm (ISO frames)

Maximum fractions

Up to 8 fractions in one operation

Timer

Up to 60 minutes

Amplitude

Adjustable vibration amplitude

Standards

ASTM E11, ISO 3310 (test sieve frames)

Typical applications

Cement, aggregates, soils, quarry, food and chemical powders

Applications support
