Vector sieve cover
Fits the top sieve of the column to prevent dust emission, sample loss, and environmental contamination during high-amplitude shaking. Available in diameters from 75 mm up to 400 mm and imperial 8 / 12 in sizes.
Request quoteISO 3310-1 and ASTM E11 woven wire test sieves with covers and collection pans — calibration certificates, laser-etched serials and traceability for lab sieving.
ISO 3310-1
product
Woven Wire Mesh Test Sieves, Pans & Covers
125 mm – 20 µm · sieve pan & cover · wet sieving · ISO 3310-1 / ASTM E11 · calibration certificate
Overview

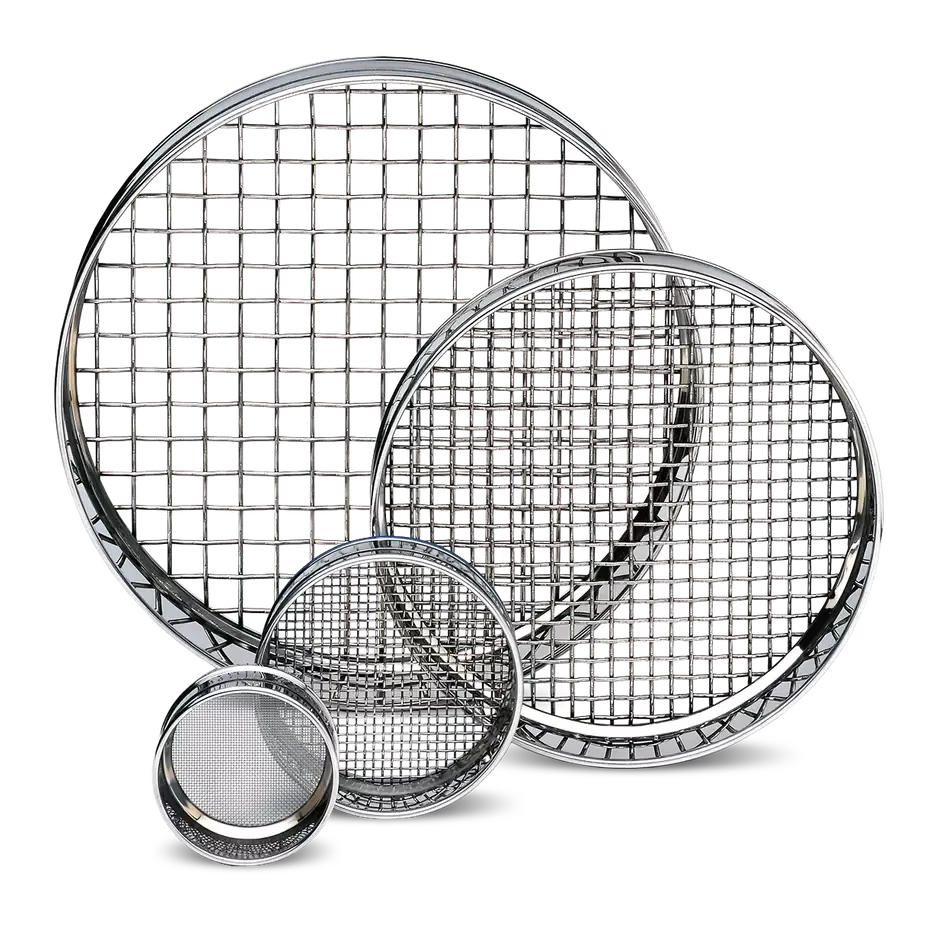

Vector Scientific woven wire mesh test sieves are trusted across laboratory sampling and particle size analysis workflows. Manufactured from premium stainless steel, they are offered in metric diameters of 100, 200, 300, 400, and 450 mm and imperial sizes of 8 and 12 inches.
Aperture sizes span 125 mm down to 20 µm in both full-height and half-height configurations (full and half-height variants available for 200 / 300 mm and 8 / 12 inch models). Frames and mesh are built for consistent nesting with shakers and air jet systems used in your lab.
At a glance
- 125 mm – 20 µm — wide aperture range
- 100–450 mm · 8 / 12 in diameters
- ISO 3310-1, ASTM E11 compliant
- Calibration certificate with each sieve
- Laser-etched serial number — full traceability
- Re-calibration service available
Standards & conformity
Browse the standards library
Inspected and calibrated in accordance with ISO 3310-1 (Clause 5.1, Table 1) and ASTM E11. Each sieve is supplied with a Calibration Certificate documenting aperture and wire measurements, weave type, and serial number.

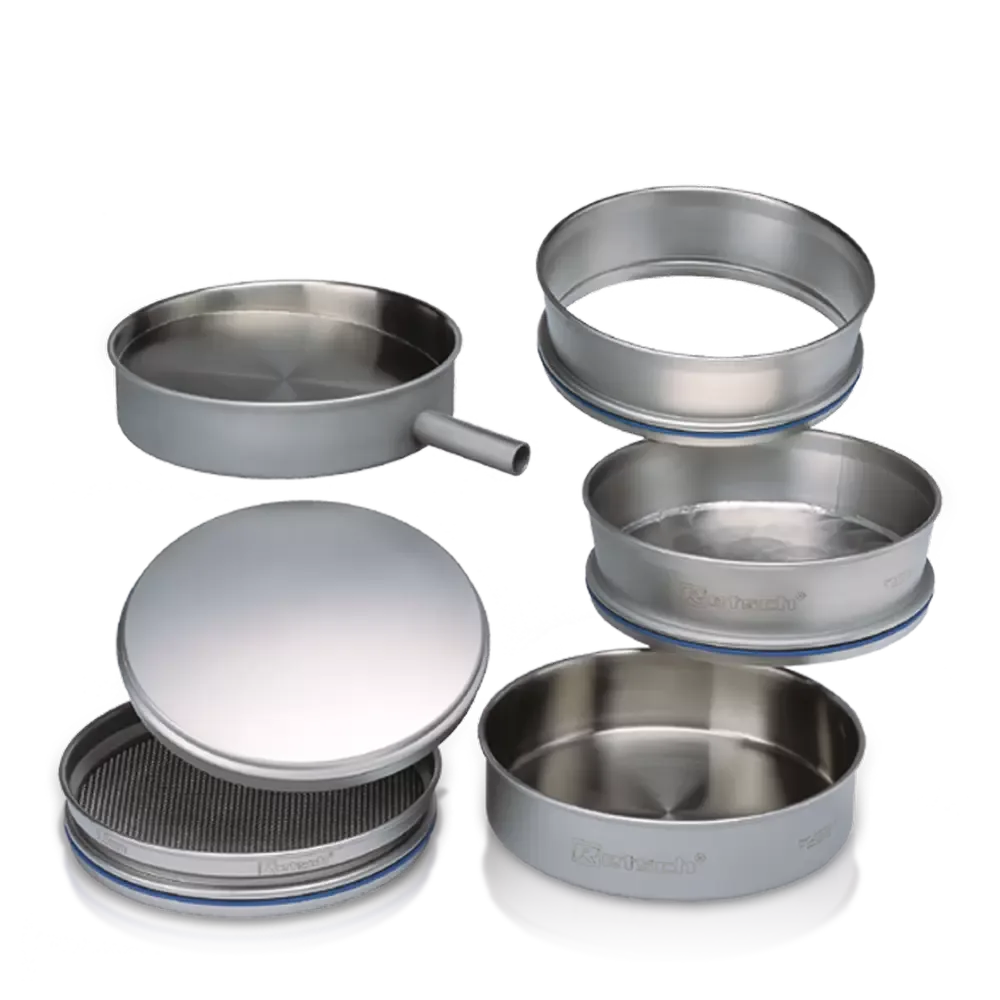

Complete your sieving tower
Test sieves need a matching cover and collection pan to form a sealed stack. Vector supplies stainless steel accessories in the same diameters as your woven wire sieves.
Vector sieve pan (dry)
Collection pan at the base of the stack captures the finest passing fraction. Precision frame geometry nests with test sieves for stable dry sieving on electromagnetic shakers.
Request quoteVector sieve pan (wet)
Specialized discharge pan with drainage nozzle for wet sieving — when samples must be washed through the stack with water or spray. Specify diameter and drain configuration in your quote request.
Request quoteEngineering features
Premium frame geometry, residue-free mesh transitions, and documented traceability for audit-ready sieve analysis.
High-stability frame geometry
Optimum frame transition lets sieves nest silently on shakers with zero lateral slip during vibration.
Residue-free design
Smooth mesh-to-frame bond prevents material hang-up and cross-contamination between batches.
Even tensioning technology
Wire cloth stays uniformly taut over time — no sagging that would skew residue-on-sieve results.
Hermetic seal
Crevice-free joints between stacked frames help prevent sample loss and dust escape.
100% traceability
Laser-engraved serial number on every sieve; Inspection or Calibration Certificate available for audits.
Re-calibration service
Used sieves re-inspected to ISO 3310-1 / ASTM E11; renewed certificate when tolerances hold.
Complete sieving solutions
Reliable sieve analysis requires a perfectly sealed tower — not isolated test sieves alone. Vector provides woven wire mesh test sieves plus matching sieve covers and collection pans for dry and wet laboratory programmes.
Premium accessories for accurate results
- Vector sieve covers — tight fit on the top sieve; diameters 75 mm–400 mm and 8 / 12 in.
- Vector sieve pans — dry collection at the stack base; wet-sieving pans with drainage on request.
Why choose Vector test sieves?
- Traceability & certification — ISO 3310-1 and ASTM E11 alignment; serial number and certificate options.
- Residue-free design — smooth mesh-frame transition for easy cleaning.
- Exceptional stability — optimized geometry for electromagnetic sieve shakers.
Accessory
Wet sieving accessories
Some materials cannot be sized by dry shaking alone. Vector supplies drainage collection pans and compatible stack components for wash-through sieving with water or spray.
- Drainage pan — outlet nozzle for controlled discharge of fines and wash water.
- Matched diameters — 200 / 300 / 400 mm and 8 / 12 in to match your sieve set.
- Shaker pairing — stack design support with our analytical sieve shaker.
Calibration & certification
Each Vector sieve can be supplied with an Inspection Certificate (conformance documentation) or a full Calibration Certificate with measured aperture and wire data — both tied to the laser-etched serial number for audit trails.
The Calibration Certificate expands on basic compliance with:
- Aperture & wire data — counts and diameters measured.
- Statistics — average aperture size and standard deviation (warp and weft).
- Weave & serial — weave type and individual serial number recorded.
Re-calibration service
Vector offers professional re-calibration for used sieves. Units are inspected against original specifications; when tolerances remain acceptable, a new Calibration Certificate is issued to support ongoing laboratory compliance.
- Inspection — verification against ISO 3310-1 / ASTM E11 criteria.
- Documentation — renewed certificate for audit trails.
- Vector support — sieve selection, stack design, and shaker pairing guidance.
Complete sieving tower
Diameter & accessory matrix
Standard availability by frame diameter. Confirm aperture size, height profile, and wet-sieving options in your quote request.
| Product | 200 mm | 300 mm | 400 mm | 8 in | 12 in |
|---|---|---|---|---|---|
| Woven wire test sieve | ✓ | ✓ | ✓ | ✓ | ✓ |
| Sieve cover | ✓ | ✓ | ✓ | ✓ | ✓ |
| Collection pan (dry) | ✓ | ✓ | ✓ | ✓ | ✓ |
| Collection pan (wet / drain) | On request | On request | On request | On request | On request |
Vector woven wire mesh test sieves
Technical overview
Mesh type
Woven wire mesh
Diameter options
100 / 200 / 300 / 400 / 450 mm · 8 / 12 in
Aperture sizes
125 mm down to 20 µm
Frame material
Premium stainless steel
Mesh material
Premium stainless steel
Height profiles
Full and half-height (200 / 300 mm and 8 / 12 in models)
Standards
ISO 3310-1, ASTM E11
Accessories
Sieve covers; dry collection pans; wet-sieving pans with drainage (on request)
Certification
Inspection or Calibration Certificate; laser-etched serial number
Applications support
Not sure this is the right model?
Share your standard, sample type, and lab workflow — we'll recommend a verified configuration you can quote against.
- Matched to EN, ISO, and ASTM test methods
- Quote and lead time typically within one business day
- On-site demo or remote walkthrough available
