Applicable standards
Vector designs and manufactures grips and fixtures for the test standards listed below. Configuration is confirmed for your specimen type and frame capacity.
- DIN 4843
- GOST 9292
- ISO 20344
- DIN CEN/TR 16792

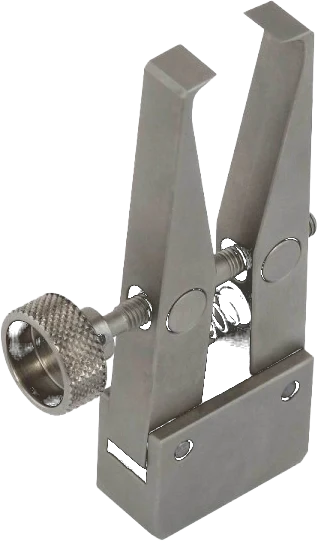

Pincer grips — DIN 4843, ISO 20344, and small or irregular specimen tensile programmes.
Pincer grips use a scissor-like motion for small, delicate, or irregular specimens where wedge or screw grips are impractical.
Common for footwear sole adhesion, button pull-out, fine wire, and small-component tests requiring light, even pressure.
Maximum test capacity
| Standard | Max. load / force |
|---|---|
| ISO 20344 (footwear) | Typical 1–2 kN |
Compatible universal testing machines
View UTM capacity range
Benchtop Universal Testing Machine (0.5–2 kN)
Vector Tesla Series single-column benchtop universal testing machine for high-precision, low-force material testing — ASTM E4 / ISO 7500-1 Class 0.5.
- iso-7500-1
- astm-e4
- +3 more
View details →
Universal Testing Machine (5–50 kN)
Vector Tesla Series dual-column floor-standing universal testing machine for industrial QA and R&D at 5–50 kN — ASTM E4 / ISO 7500-1 Class 0.5.
- iso-7500-1
- astm-e4
- +3 more
View details →
Universal Testing Machine (100–300 kN)
Vector Tesla Series heavy-duty dual-column UTM for tensile, compression, flexure and shear up to 300 kN — ASTM E4 / ISO 7500-1 Class 0.5 accuracy.
- iso-7500-1
- astm-e4
- +5 more
View details →
