Vibratory Disc Mill
QUICK NAVIGATION
Vector Vibratory Disc Mill, a fully automatic device designed for efficient grinding of fragile materials and minerals. This mill combines innovative technology with user-friendly features, delivering exceptional performance in sample preparation for both laboratory and industrial applications.
Key Features
High Grinding Efficiency
Reduces input particle size from 15–20 mm to a final size of 20–70 microns, achieving analytical fineness quickly.
Versatile Grinding Options
Compatible with grinding sets in volumes of 100, 250, 500, 1000, and 2000 ml, made of chromium-nickel steel or tungsten carbide for diverse material types.
Customizable Operation
Features a touch-screen interface with adjustable revolution speeds (up to 1800 RPM) and grinding times, along with 10 preset programs for repeatable results.
Durable Construction
Built for industrial use, suitable for geology, mineralogy, metallurgy, building materials, and power plants.
Air-Cushioned Grinding Cell
Provides enhanced stability and facilitates easy installation and removal of grinding sets.
Soundproofed Safety Cabin
Minimizes noise during operation, creating a quieter and safer work environment.
Enhanced Safety Features
Includes an emergency stop button, air shock absorbers on the cover, and a protective switch system that halts operation when the cover is opened.
Spectral Analysis Compatibility
Produces fine samples ideal for spectral analysis with high precision and reliability.
Overview
General information about the product
Unmatched Grinding Efficiency
Capable of reducing materials from an initial size of 15–20 mm down to a final particle size of 60–90 microns, the Vector Vibratory Disc Mill achieves analytical fineness quickly and reliably. It’s ideal for processing a wide range of substances, including basalt, bauxite, concrete, chrome, dolomite, ferromanganese, granite, coal, quartz, limestone, and slag.
Robust Construction
Operating at 220V and 50Hz, the Vector Vibratory Disc Mill is built to withstand rigorous industrial use. Its durable construction makes it suitable for sectors like building materials, geology, mineralogy, metallurgy, and power plants.
Air-Cushioned Grinding Cell
The grinding cell incorporates an air cushion at the top, providing additional stability and making it easy to install and remove grinding sets. This design ensures consistent results and simplifies maintenance.
Enhanced Safety and Comfort
Designed with user safety in mind, the mill features a soundproofed safety cabin that minimizes noise during operation, creating a quieter work environment. Air shock absorbers on the cover enhance stability during grinding, and a protective switch system automatically stops the mill when the front cover is opened.
Ideal for Spectral Analysis
With its ability to achieve high fineness rapidly, this mill is perfect for preparing samples for spectral analysis, ensuring accurate and reliable results every time.
Versatile Grinding Options
Compatible with grinding sets of 100, 250, 500, 1000 and 2000 ml volumes, the mill offers flexibility to handle various sample sizes and material types. Choose between chromium-nickel steel and tungsten carbide grinding sets to optimize performance for your specific application.
User-Friendly Touchscreen Interface
The intuitive touch-screen control panel allows for seamless operation. Set your desired grinding times and revolution speeds with ease, and take advantage of 10 customizable preset programs to meet specific sample requirements efficiently.
Industries
Cement and Building Materials
Grinding cement and other construction materials for quality control and spectral analysis.
Geology and Mineralogy
Preparation of mineral samples for research and testing.
Metallurgy
Grinding metallic and non-metallic materials for analysis and process control.
Power Plants
Sample preparation for coal and slag testing.
Material Science Laboratories
Research and development in material composition and properties.
Technical Specification
Technical specification about the product
Operation | Fully automatic with touch-screen control |
Preset Programs | 10 customizable presets for grinding times and revolution speeds |
Input Particle Size | 15–20 mm |
Final Particle Size | 60–90 microns |
Grinding Sets Compatibility | Volumes of 100 ml, 250 ml, 500 ml, 1000 ml and 2000 ml |
Material options: | Chromium-nickel steel, Tungsten carbide |
Grinding Time | Adjustable via touch-screen interface |
Revolution Speed | Adjustable; users can set desired revolution values up to 1800 rpm |
Safety Features | Emergency stop button |
Air shock absorbers on the cover | |
Protective switch system that stops operation when the front cover is opened | |
Air-Cushioned Grinding Cell | Air cushion at the top for enhanced stability and easy installation/removal of grinding sets |
Noise Reduction | Soundproofed cabin minimizes operational noise |
Power Supply | 220V / 50Hz |
Construction | Robust design suitable for industrial use in sectors like geology, mineralogy, metallurgy, and power plants |
Dimensions (L x W x H) | ?? |
Weight | ?? |
Accessories
Accessories compatible with the product

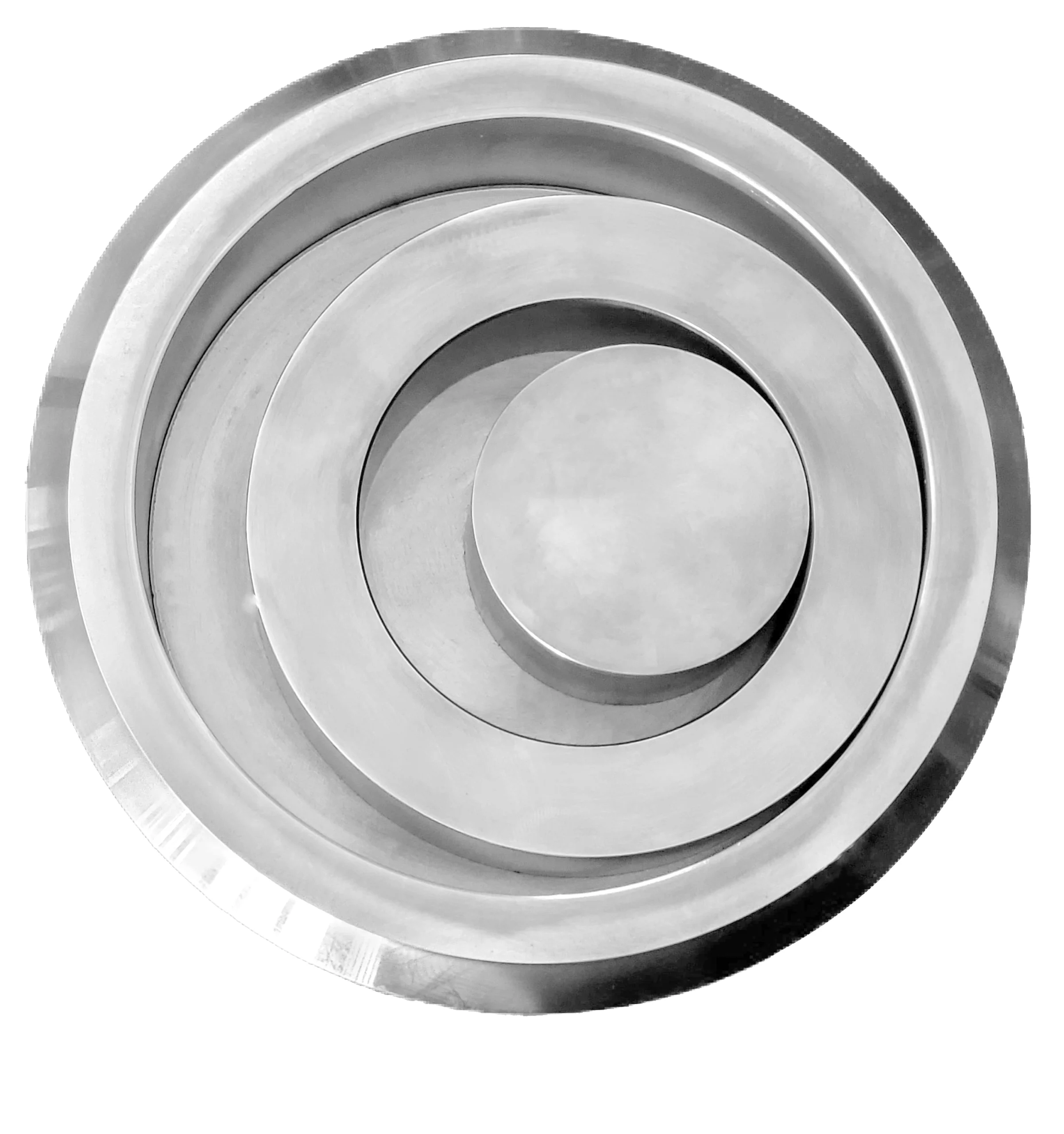

Grinding Sets 50, 100, 250, 500, 1000 and 2000 ml
Vector’s precision grinding sets (50–2000 ml) offer high-performance milling and pulverizing to µm-scale particle sizes, compatible with pulverizer ring mills and laboratory ring mill systems. Choose hardened steel for durability or tungsten carbide for high-wear resistance, ensuring ISO-compliant, contamination-free results in mining, pharmaceuticals, and material science.
