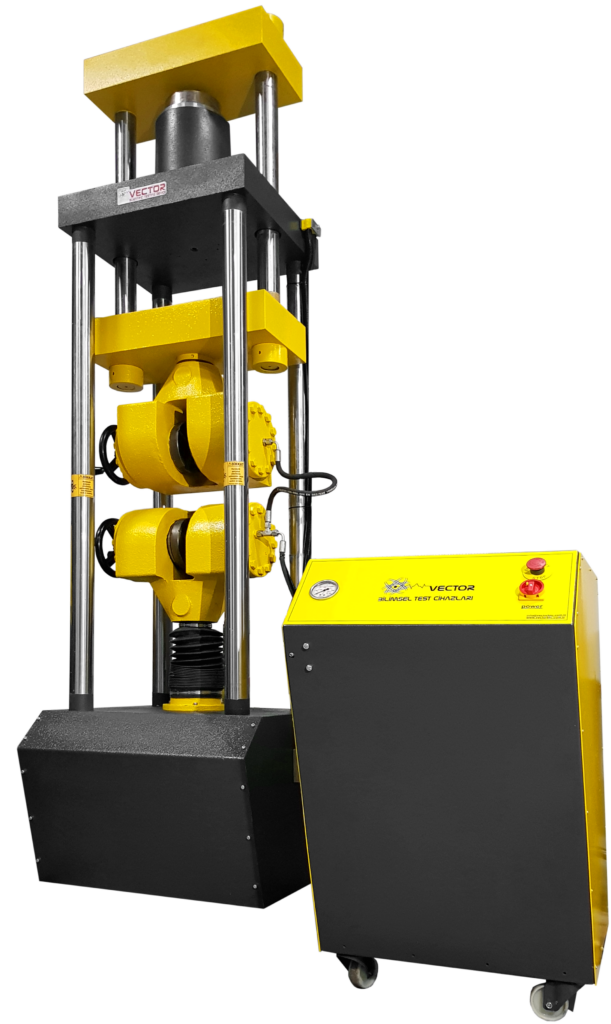

Hydraulic Universal Test Machine

QUICK NAVIGATION

HDR UTM
  • Servo-hydraulic test systems designed for tensile, compression, and bending tests.
  • Capable of determining the strength, deformation, and life expectancy of polymers, composites, metals, and other materials.
  • Fully computer-controlled, with load and deformation values displayed in real-time
  • Tests can be programmed according to the desired standard, test type, speed, specimen dimensions, and conditions. The system includes a library of predefined test standards, while also allowing users to create and save custom test settings for future use.
  • Supports a wide range of tests in accordance with international standards using appropriate grips and fixtures.

Design & Construction

Hydraulic Operation

TESLA series devices are servo-hydraulic, providing smooth and precise control of tensile, compression, and bending tests.

Dual-Test Capability

Allows testing in tension, compression, and bending without changing the main setup.

User-Friendly Operation

Ergonomic controls, including handset with fine position wheel, programmable softkeys, start/stop/return, and variable-speed jog, improve operator comfort.

Product Code

VTR-50-0500

Overview

Overview

Fully computer-controlled operation via dedicated TESLA Series software.

User-defined test parameters including:

    • Test type flexibility: Supports tensile, compression, and bending tests, as well as staggered (stepwise) load tests such as staged tensile or staged compression, allowing simulation of real-world loading conditions.
    • Test speed, Test Force Rate, Test Strain Rate
    • Sample dimensions
    • Environmental conditions (with optional chambers)
  • Pre-programmable test methods saved in the system for quick recall.
  • Real-time monitoring of load, elongation, and displacement values.

Accessories & Fixtures

  • Wide selection of tensile grips for different
    materials.
  • Compression platens, bending fixtures, and
    extensometers.
  • Custom jigs and fixtures available on request.

Standarts Compliance

  • Machine Standards: ISO 7500-1, ASTM E4, DIN 51221, AFNOR A03-501, TS EN ISO 6892-1, TS 1398-1, TS EN ISO 178:2010
  • Material Test Standards: ASTM A370, A615, C39, C109, E4, E8, E9, E83, E290, F606; ISO 6892-1, 6892-2, 7438, 7500-1, 9513, 15630-1; BS 4449; EN 10002-1, 10002-2

Safety & Ergonomics

  • Emergency stop button for immediate test interruption.
  • Overload protection to prevent damage to the machine or specimen.
  • Optional transparent safety enclosure for operator protection.
  • Low-noise operation for laboratory environments.

Hardware Features

  • 2 extra analogue channels.
  • Integrated amplifiers for sensor outputs and signal conditioning.
  • RS-232 or Ethernet interface for PC connection.
  • Displacement-controlled, strain rate and load-controlled operation modes.
  • Heavy-duty load frame designed for long-term stability and precision.

Applications

Tensile strength determination for metals, polymers, and composites.

Compression testing of rigid and semi-rigid materials.

Flexural/bending strength evaluation for plastics, composites, and metals.

R&D studies, quality control, and academic research applications.

Vector VTR-40-0500 Tesla Series – Double-Column (5–50 kN) 2
Vector VTR-40-0500 Tesla Series – Double-Column (5–50 kN) 3
Vector VTR-40-0500 Tesla Series – Double-Column (5–50 kN) 4
Vector VTR-40-0500 Tesla Series – Double-Column (5–50 kN) 5

Technical Specification

Technical specification about the product

Numbers of Columns

4 Column

PID Controlled Loading Range

1 Newton

Accuracy

≤ ±%0,5

Elongation Accuracy

< ±1% ( %1 – %100 of total scale of the extonsemeter)

Crosshead Accuracy

0.05 mm

Load Resolution

0.01-1 kN

Deformation Measurement Range

Adjustable

Adjustable Speed

0.5 mm/dk – 250 mm/dk

Interface

PC software

Communication

All USB 2.0/3.0 USB

Capacity (kN)

300 kN

500-600 kN

1000-2000 kN

3000-5000 kN

Wegiht (kg)

1460 kg

1650 kg

4500-6000 kg

8000-15000 kg

Power (kW)

3 kW

10 kW

10 kW

10 kW



Downloads

Download product catalogue, brochure and technical document

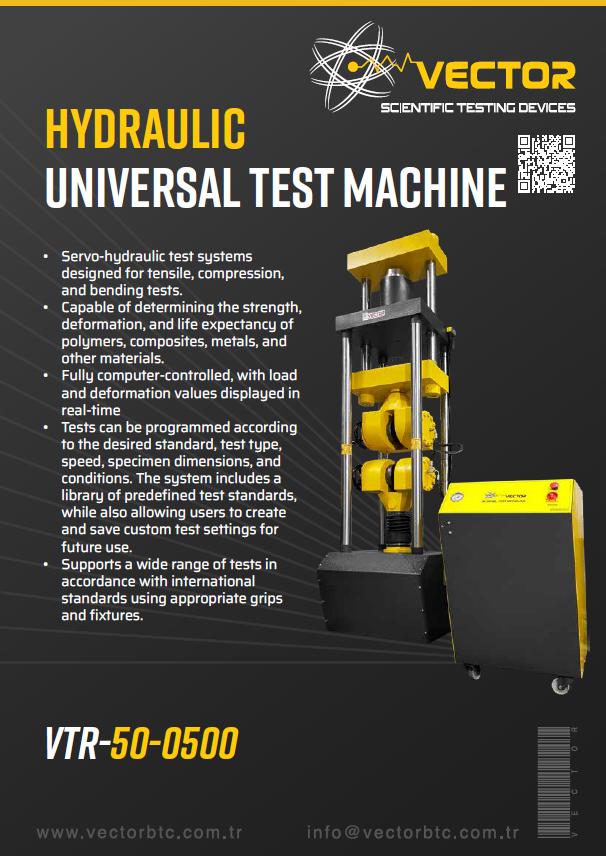

Hydraulic Universal Test Machine
