Versatile and Reliable High-Temperature Furnaces
Elevate your laboratory and industrial processes with the Vector Muffle Furnace series—high-quality, general-purpose furnaces designed for precision and reliability across a multitude of sectors. Ideal for applications in metalworking, ceramics, food processing, jewelry, dentistry, cement, lime, gypsum, and mining industries, these furnaces are engineered to meet the rigorous demands of modern laboratories and production facilities.
Key Features
Wide Temperature Range
Continuous working temperatures of 1100 °C, 1200 °C, and 1300 °C, with options up to 1700 °C for high-temperature applications.
Programmable PID Microprocessor Control
Allows for up to 10 programs with 10 steps, enabling precise and customizable thermal processes.
Efficient Insulation
Inner chamber made from high-temperature resistant ceramic insulation with vacuum-formed fiber plates and fire bricks for optimal thermal efficiency and durability.
User-Friendly Interface
Illuminated touch LCD display for real-time temperature monitoring, date/time recording, and easy programming.
Enhanced Performance Features
Includes rapid heating capabilities, a night adjustment program for energy savings, and fault/warning commands for safe operation.
Safety and Clean Operation
Standard chimney for safe discharge of fumes and smoke, ensuring a clean laboratory environment.
Overview
General information about the product
With maximum operating temperatures ranging from 1100 °C up to 1700 °C, Vector Muffle Furnaces provide the necessary conditions for various high-temperature processes. Whether you are performing ashing, quality control testing, melting, preheating, or heat treatment, these furnaces offer the versatility and performance required for even the most demanding applications.
Advanced Design and Construction

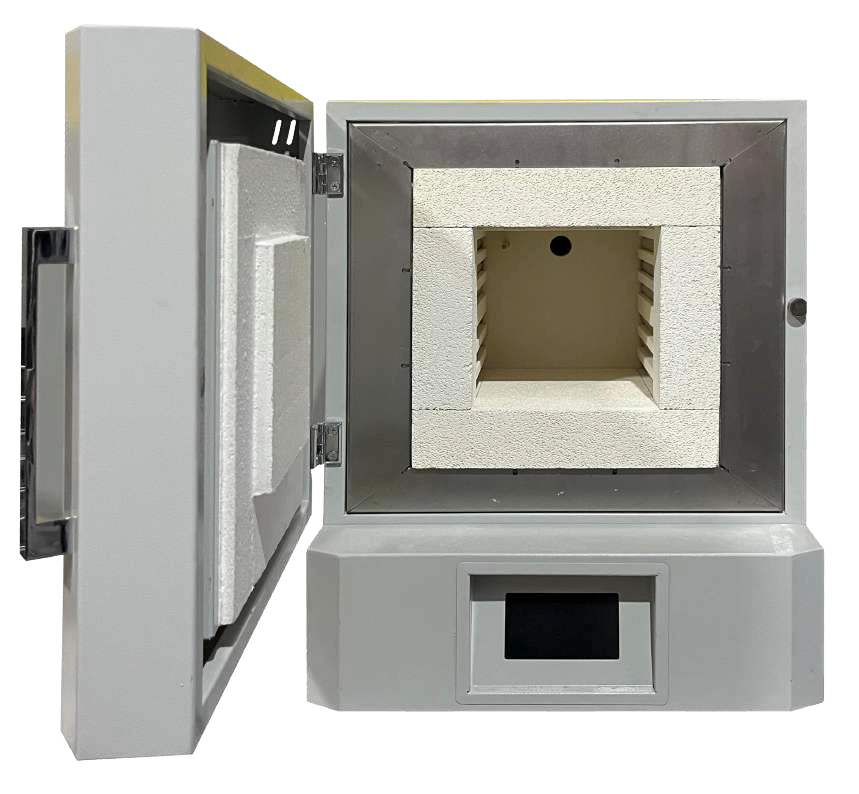

The furnace chamber is constructed from high-temperature resistant ceramic insulation, ensuring optimal thermal efficiency and durability. The cell comprises vacuum-formed fiber plates and fire bricks, providing excellent insulation and energy savings. A standard chimney facilitates the safe discharge of fumes and smoke generated during operation, maintaining a clean and safe laboratory environment.
Precision Control with Programmable Microprocessor
Equipped with a programmable PID microprocessor control unit, Vector Muffle Furnaces deliver precise temperature control and stability. The illuminated touch LCD display allows for easy monitoring and adjustment, showing real-time temperature readings. Users can program multiple heating profiles with options for 5 programs with 5 steps or 10 programs with 10 steps, enabling complex thermal processes tailored to specific applications.
Industries
Metal Industry
Heat treatment, annealing, and stress relieving of metal components.
Ceramics and Glass
Firing and sintering of ceramic and glass materials.
Food Industry
Ashing of food samples for quality control and analysis.
Jewelry and Dentistry
Melting and casting of precious metals, burnout processes.
Cement, Lime, and Gypsum
Quality control testing, material analysis, and sample preparation.
Mining Industry
Ore sample testing, mineral analysis, and assay work.
Technical Specification
Technical specification about the product
| Model | VTR-13-011-5 | VTR-13-011-7 | VTR-13-011-10 | VTR-13-011-20 |
| Continuous Working Temperature (oC) | 1100-1200-1300 | |||
| Internal Volume (Lt.) | 5 | 7 | 10 | 20 |
| Inner Chamber | High temperature resistant ceramic insulation | |||
| Control Unit | Programmable PID Microprocessor Control Unit | |||
| Program and Step-1 | 5 Programs – 5 Steps | |||
| Program and Step-2 | 10 Programs – 10 Steps | |||
| Network (V – Hz) | 220V – 50Hz | |||
| Power (Watt) | 2000W | 3000W | 3000W | 3500W |
| Internal Hopper Measurements | 15x23x15 | 17x23x17.5 | 20x27x18.5 | 28x32x25x23 |
| External Dimensions | 44x49x55 | 46.5x49x57.5 | 49x51x60 | 54x54x68 |
