Cement Flow Table
QUICK NAVIGATION
Enhance the accuracy and reliability of your cement, lime, and mortar testing with our versatile Cement Flow Table. Designed to determine the consistency, flow, and workability of fresh mixtures, this essential tool is ideal for construction sites and laboratory settings focused on quality control and material analysis. Compliant with international standards such as ASTM C230, ASTM C109, EN 459-2, EN 1015-3, and EN 3279-2, the Cement Flow Table provides crucial insights into the characteristics of building materials, aiding in the assessment of workability, cohesion, and consistency crucial for construction applications.
Key Features
Wide Temperature Range
Continuous working temperatures of 1100 °C, 1200 °C, and 1300 °C, with options up to 1700 °C for high-temperature applications.
Programmable PID Microprocessor Control
Allows for up to 10 programs with 10 steps, enabling precise and customizable thermal processes.
Efficient Insulation
Inner chamber made from high-temperature resistant ceramic insulation with vacuum-formed fiber plates and fire bricks for optimal thermal efficiency and durability.
User-Friendly Interface
Illuminated touch LCD display for real-time temperature monitoring, date/time recording, and easy programming.
Enhanced Performance Features
Includes rapid heating capabilities, a night adjustment program for energy savings, and fault/warning commands for safe operation.
Safety and Clean Operation
Standard chimney for safe discharge of fumes and smoke, ensuring a clean laboratory environment.
Overview
General information about the product
Essential Tool for Determining Cement and Mortar Consistency

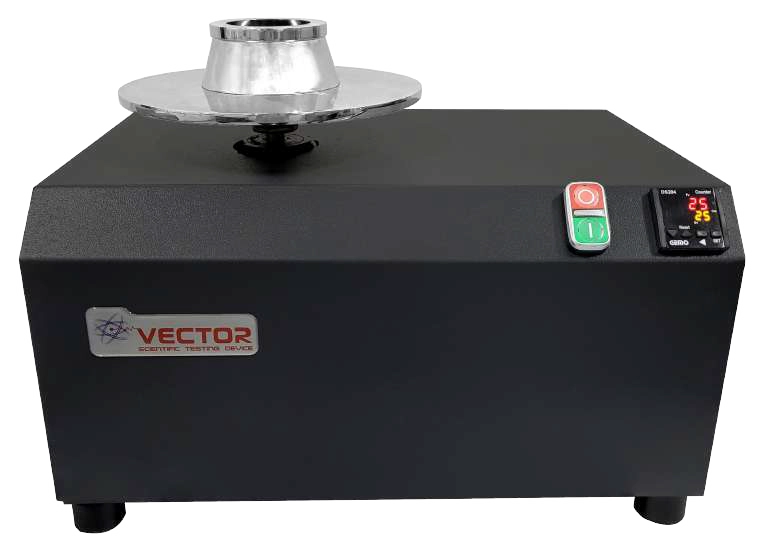

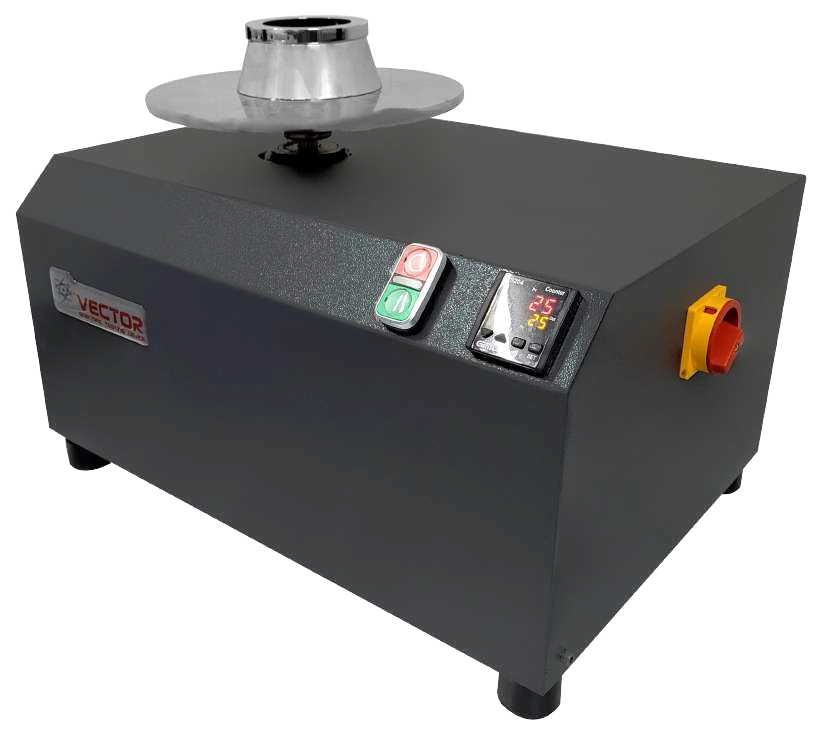

Our Cement Flow Table is available in both manual and motorized models to suit different user preferences and testing requirements. The manual model features a hand-operated wheel that allows precise control over the drip rate by turning the handwheel, enabling users to adjust the flow rate and achieve accurate results. The motorized model is equipped with a motor speed reducer and mechanical fittings that ensure the table operates at a consistent rate of one revolution per second. The number of drops is preset on a digital revolution counter, and the machine stops automatically when the required number of drops is reached, streamlining the testing process and ensuring repeatability.
The table comes in two versions to comply with different standards: EN and ASTM.
Both versions are supplied complete with molds and tampers, facilitating comprehensive testing procedures right out of the box. The apparatus consists of a circular top table with a spindle and tripod, providing a stable and durable platform for testing. The EN models also include a filling hopper, enhancing the ease of specimen preparation.
EN Version
- Features a 300mm diameter table made of stainless steel.
- Includes a conical mold made of stainless steel with dimensions of 100mm base diameter, 70mm top diameter, and 60mm height.
- Equipped with a stainless steel hopper for easy and uniform filling of the mold.
ASTM Version
- Features a 254mm diameter table made of high-quality brass with a smooth plane surface finish.
- Includes a conical mold made of brass with dimensions of 100mm base diameter, 70mm top diameter, and 50mm height.
- Comes with a bronze spreading mold and a Ø40×200mm bronze mallet weighing 250g for comprehensive testing.
Industries
Metal Industry
Heat treatment, annealing, and stress relieving of metal components.
Ceramics and Glass
Firing and sintering of ceramic and glass materials.
Food Industry
Ashing of food samples for quality control and analysis.
Jewelry and Dentistry
Melting and casting of precious metals, burnout processes.
Cement, Lime, and Gypsum
Quality control testing, material analysis, and sample preparation.
Mining Industry
Ore sample testing, mineral analysis, and assay work.
Technical Specification
Technical specification about the product
| Specification | EN Version | ASTM Version |
| Operation | Manual or Motorized | Manual or Motorized |
| Table Diameter | 300 mm | 254 mm (10 inches) |
| Table Material | Stainless Steel | Bronze |
| Mold Material | Stainless Steel | Brass |
| Mold Dimensions | ||
| – Base Diameter | 100 mm | 100 mm |
| – Top Diameter | 70 mm | 70 mm |
| – Height | 60 mm | 50 mm |
| Includes | ||
| – Mould | Yes | Yes |
| – Tamper | Yes | Yes |
| – Hopper | Yes (Stainless Steel) | Not included |
| – Spreading Mold | Not applicable | Bronze |
| – Mallet | Not applicable | Ø40 × 200 mm Bronze Mallet (250 g) |
| Drip Rate Adjustment | Manual Handwheel (Manual Models) | Manual Handwheel (Manual Models) |
| Motorized Operation | Motor speed reducer at 1 revolution per second | Motor speed reducer at 1 revolution per second |
| Automatic Stop | Yes, via digital revolution counter (Motorized Models) | Yes, via digital revolution counter (Motorized Models) |
| Number of Drops | Preset on counter (Motorized Models) | Preset on counter (Motorized Models) |
| Power Supply | 230 V, 1 phase, 50 Hz, 150 W (Motorized Models) | 230 V, 1 phase, 50 Hz, 150 W (Motorized Models) |
| Standards Compliance | EN 459-2, EN 1015-3, EN 13279-2 | ASTM C230, ASTM C109, ASTM C452, ASTM C87 |
| Weight | ???? | ????? |
| Construction | Circular top table with spindle and tripod | Circular top table with spindle and tripod |
| Operation Rate | 1 revolution per second (Motorized Models) | 1 revolution per second (Motorized Models) |
| Adjustment of Drop Rate | Manual via handwheel (Manual Models) | Manual via handwheel (Manual Models) |
| Automatic Digital Counter | Included in Motorized Models | Included in Motorized Models |
